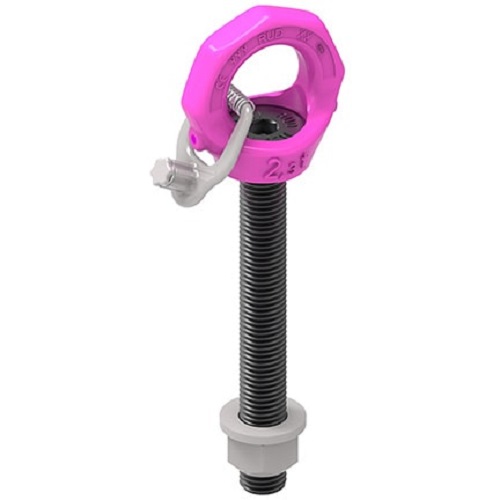

VRS-F STARPOINT, Variable Metric Thread

VRS-F STARPOINT, metric thread with variable length, comes with locknut and washer. Clever installation – simple alignment.


  • 360° adjustable in force direction
  • Higher WLL than the DIN 580 eyebolt
  • Easy-Fit-Key for easy assembly and disassembly


Product brochure coming soon
Product manual coming soon

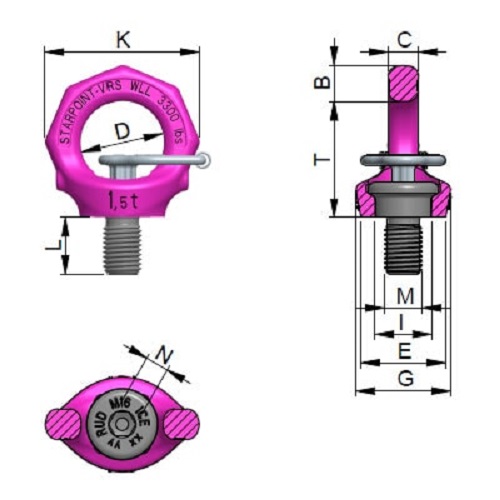

Part No. WLL (tonnes) M (mm) T (mm) C (mm) D (mm) E (mm) G (mm) I (mm) K (mm) L (mm) M (mm) N (mm)
8600270 0.4t 10 35 9 25 25 30 16.3 47 16-70 11 6
8600271 0.75t 12 42 10 30 30 34 19.8 56 18-150 13 8
8600272 1.5t 16 49 13 35 36 40 23.5 65 24-120 15 10
8600273 2.3t 20 58 16 40 41 50 29.3 76 30-160 17 12
8600274 3.2t 24 70 19 49 51 60 35 92 36-140 20 14
8600275 4.5t 30 87 27 60 66 75 44 114 45-190 26 17
