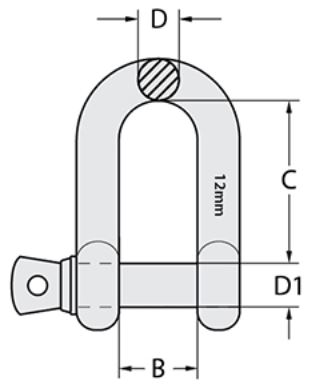

| Part No. | Size (mm) | B (mm) | D (mm) | D1 (mm) | C (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|
| 146005 | 5 | 10 | 5 | 5 | 19 | 0.015 | |
| 146006 | 6 | 12 | 8 | 6 | 24 | 0.025 | |
| 146008 | 8 | 16 | 10 | 8 | 32 | 0.054 | |
| 146010 | 10 | 20 | 11 | 10 | 40 | 0.109 | |
| 146012 | 12 | 25 | 13 | 12 | 48 | 0.205 | |
| 146016 | 16 | 32 | 16 | 16 | 64 | 0.48 | |
| 146020 | 20 | 38 | 19 | 20 | 76 | 0.815 | |
| 146022 | 22 | 44 | 22 | 22 | 85 | 1.285 | |
| 146025 | 25 | 55 | 25 | 25 | 95 | 1.866 |
